HS FOCUS 9CM PLUS ADAPTIVE
Product Code: FG
GTIN: 20705036014666
Images are for illustrative purposes only, and may not reflect current product packaging. Other sizes may be available.
HS FOCUS 9CM PLUS ADAPTIVE
Product Code: HAR9F
GTIN: 20705036014666
HS FOCUS 9CM PLUS ADAPTIVE
Short Overview

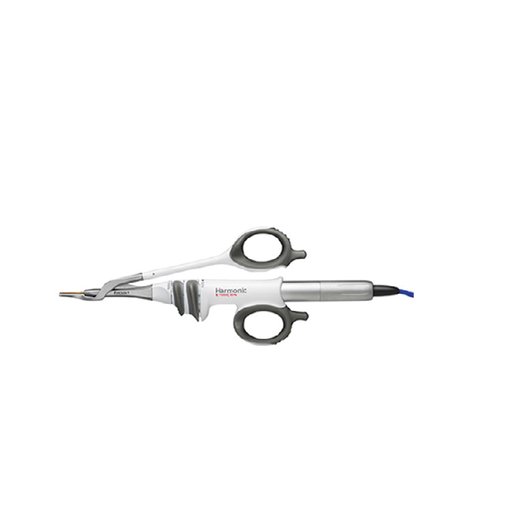

The HARMONIC FOCUS® + Shears is intended for soft tissue incisions when bleeding control and minimal thermal injury are desired. The instrument is a sterile, single-patient-use instrument consisting of a soft grip scissor handle housing assembly with two hand controls (MIN for minimum power level and MAX for maximum power level). The instrument has a curved blade and clamp arm with teflon pad. The instrument is 9 cm in length with a 16 mm active blade length. The HARMONIC FOCUS® + Shears instrument allows for the cutting and coagulation of vessels up to and including 5 mm in diameter.
Each HARMONIC FOCUS® + Shears instrument is packaged with one sterile, single patient use, disposable Gray Torque Wrench. Use only the Gray Torque Wrench with the HARMONIC FOCUS® + Shears instrument. The torque wrench should not be discarded until the completion of the surgical case. Do not attempt to sterilize the disposable torque wrench.
The two dashes on the instrument are intended to represent relative vessel size. The MAX button is typically used for smaller vessels where cutting speed is fastest. The MIN button is typically used in slightly larger vessels and has reduced cutting speed. It is indicated for vessels up to 5 mm in size. Adaptive Tissue Technology provides the generator with the ability to identify and monitor the instrument during use, which enables the generator to modulate and decrease its power output as well as provide audible feedback to the user as appropriate.
The HARMONIC FOCUS® + Shears is designed for use exclusively with the Generator G11 (GEN11) software version 2013_1 or later and HARMONIC® Blue Hand Piece, packaged separately. Software revision can be found under “System Information” in the Generator G11 (GEN11) “Settings” Menu. Refer to the Generator G11 (GEN11) Operator’s Manual for more information.
Refer to the Instructions for Use of the HARMONIC® Blue Hand Piece and Test Tip (TTBLUE) for instructions regarding the Hand Piece.
Ethicon, Intructions For Use, Harmonic. © Ethicon, Inc. 2017
|
