Short Overview

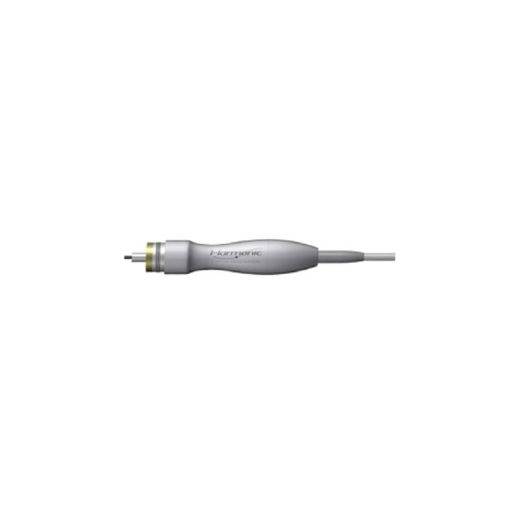

The HARMONIC® Gray Hand Piece is designed to convert electrical energy from a compatible Ethicon Generator to mechanical motion for the instrument blades. This Hand Piece is intended for use with a compatible Ethicon Generator.
The Hand Piece is permanently attached to a gray cord which connects to the front of the Generator. The Hand Piece is a re-useable instrument with a limited service life. The Hand Piece is programmed with a counter to limit the service life to 95 procedures. The Generator will give a Hand Piece error after 95 procedures are completed. The number of activations during a procedure is not limited, and the counter will not log a procedure until the Hand Piece is unplugged from the Generator or the Generator is powered down. The number of remaining procedures is indicated on the display of the Generator in the Systems Settings screen. The Hand Piece is compatible with Generator software 2018-1 or later.
The Hand Piece is packaged with a Blade Wrench and Test Tip. The Blade Wrench is used to secure instrument blades to the Hand Piece. The Hand Piece, Blade Wrench, and Test Tip are packaged non-sterile and must be sterilized per their insert instructions prior to use. Refer to a compatible Ethicon Generator User Manual before using these instruments.

Ethicon, Intructions For Use, Harmonic. © Ethicon, Inc. 2020
